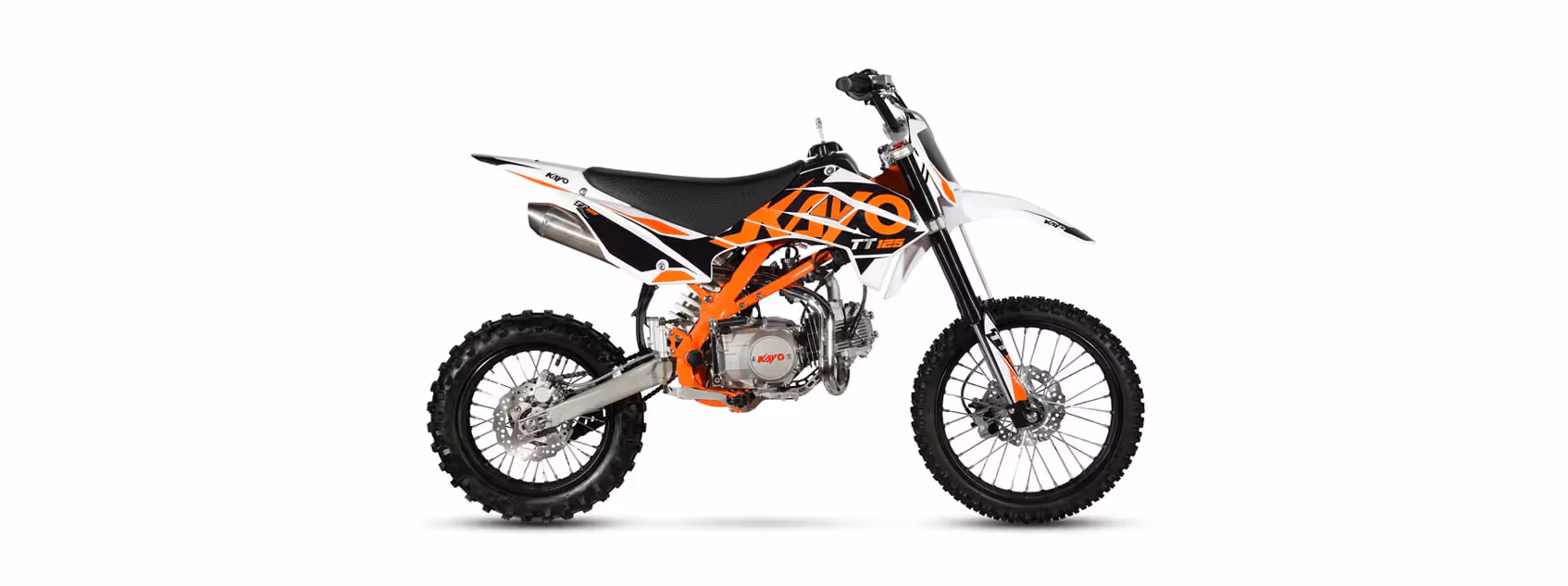

The bigger brother of our TSD 110, with 17”/14” larger wheels and seamless heavy duty twin tube cradle frame. This upgraded Kayo bike offers comfort and durability on all terrain tracks.
• Designed for experienced riders aged 8 to 14
• 119.6cc 4-Stroke Engine
• Kick Start
• 5.5L Fuel Tank
• Manual
• 17”/14” Big Foot
• New Style Fairing

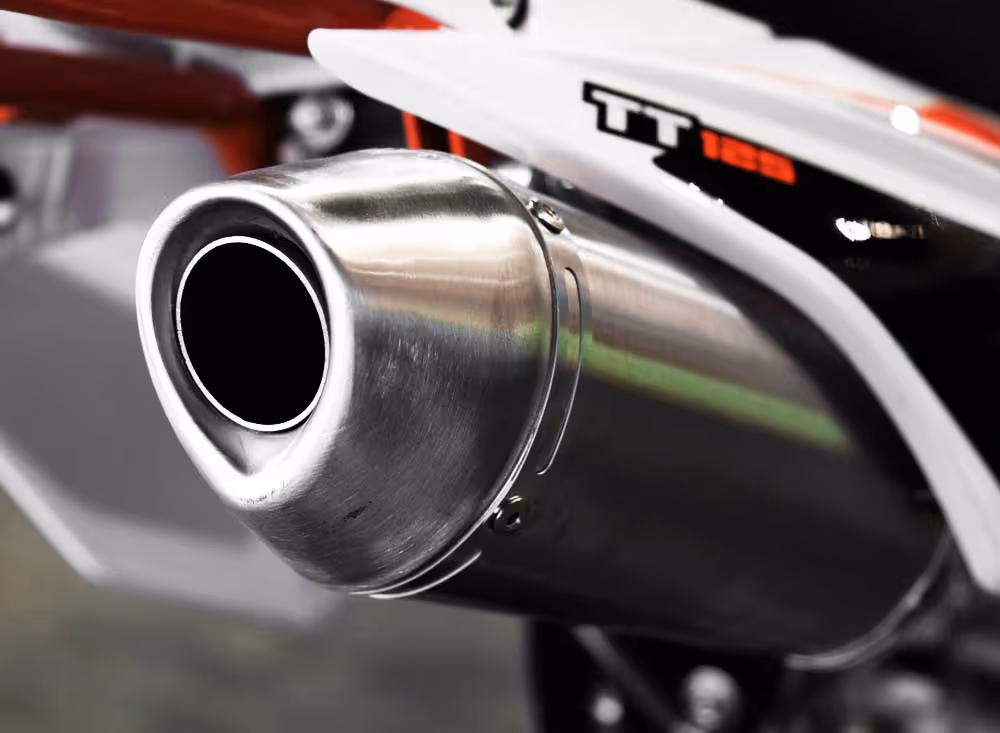

• Performance Muffler

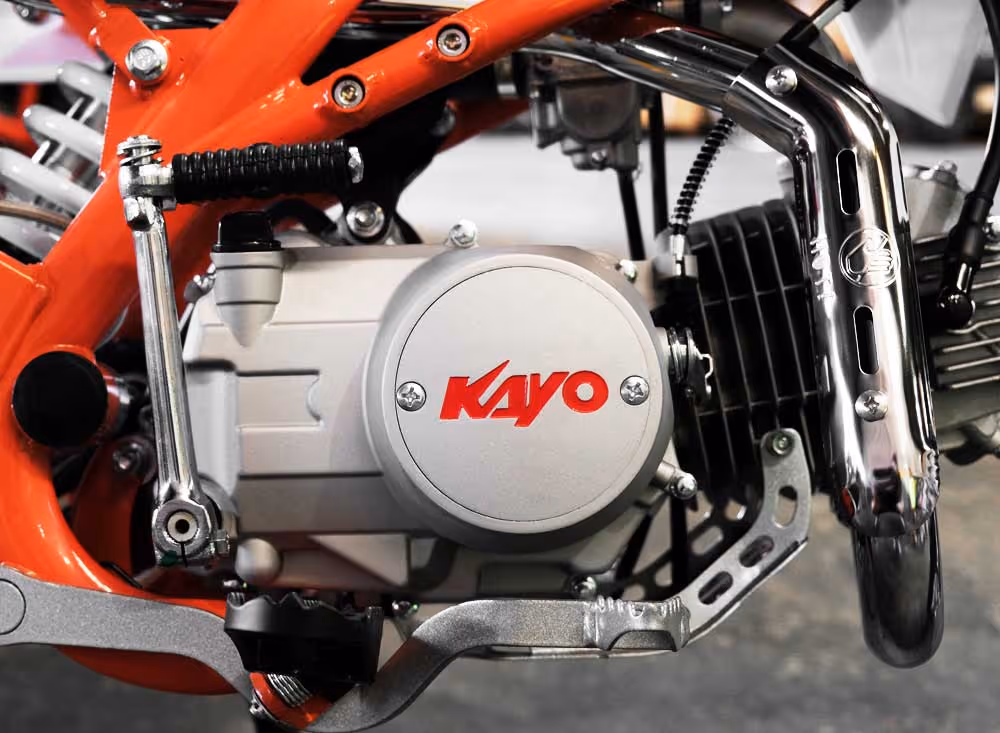

Engine Type:Single-cylinder, 4-valve, Air cooling, Manual, 4 gears
Displacement:119.6cc
Bore*Stroke:52.4mm*55.5mm
Compression Ratio:9.3 : 1
Max. Power:5.6/8000 kw/rpm
Max. Torque:8.5/5000 N.m/r/min
Fuel System:Standard Carburetor
Starting:Kick

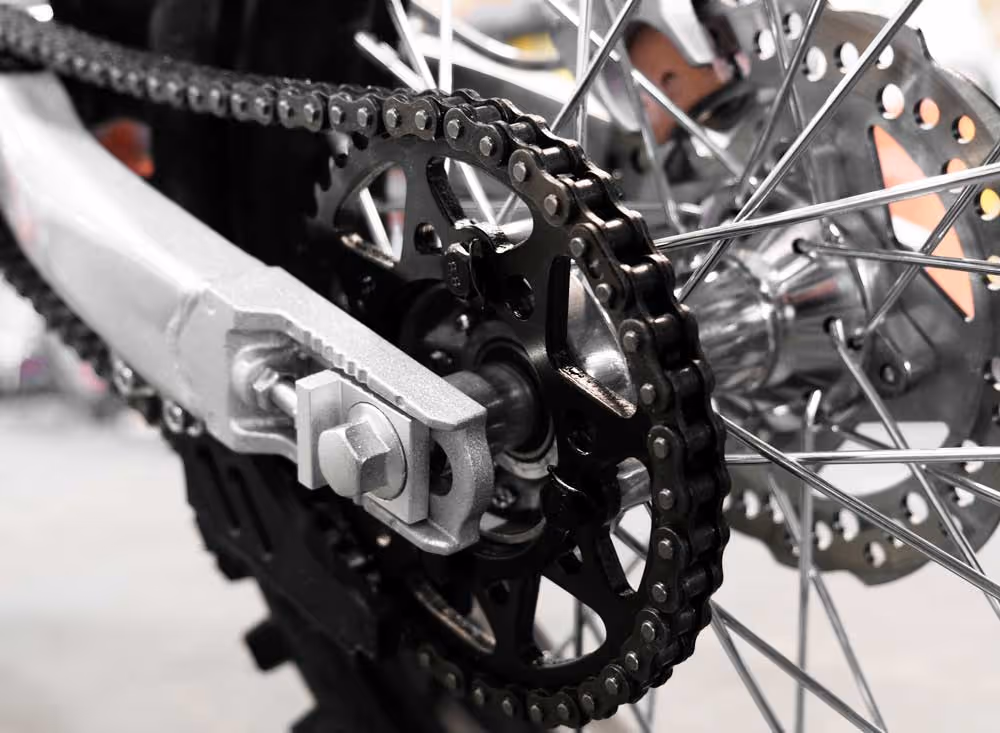

Transmission:Chain (15T-41T 428H#)
Ignition:CDI
Frame:Professional design and processed by KAYO
Front Fork:735mm Non-adjustable
Rear shock:360mm Non-adjustable
Front Braking:Disc Brake
Rear Braking:Disc Brake
Front Wheel Rim:Steel 1.6*17
Rear Wheel Rim:Steel 1.85*14
Front Tyre:17″ 70/100-17
Rear Tyre:14″ 90/100-14
Vehicle Size:1780*750*1120mm
Wheelbase:1220mm
Seat Height:855mm
Ground Clearance:290mm
Dry Weight:72kg
Fuel Capacity:5.5 L
Packing Size:1560*380*735 mm
Important Notice
This vehicle is for off-road purposes only and cannot be registered.
The laws around the use of this vehicle may vary from state to state.
Always check your local council and road traffic laws prior to using this vehicle to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
